ARP Head Studs
Fits: 93-98 Toyota Supra
Be the first one to review

Fitment

Please Note: Fits 1993-1998 Toyota Supra with the 3.0L 2JZGE or 2JZ-GTE inline 6-cylinder engine (turbo and non-turbo). ARP part number: 203-4205.

Description

The ARP head stud kit (part number 203-4205) is made for the 1993-1998 Toyota Supra with the 3.0L 2JZGE or 2JZ-GTE inline 6-cylinder engine, in both turbo and non-turbo form. The studs secure the cylinder head to the engine block and are used when building or rebuilding a 2JZ engine.

Features

  • Premium grade 8740 chrome moly steel studs, heat-treated to 200,000 psi
  • Each stud is centerless ground after heat-treat to make it as close to perfectly concentric as possible
  • Threads are rolled after heat-treat for better fatigue strength
  • 12-point nuts
  • Black oxide finish

Specifications

  • Part Number: 203-4205
  • Application: 1993-1998 Toyota Supra, 3.0L (2JZGE / 2JZ-GTE) inline 6-cylinder
  • Material: 8740 chrome moly steel
  • Heat-Treated To: 200,000 psi
  • Nut Style: 12-point
  • Finish: Black oxide

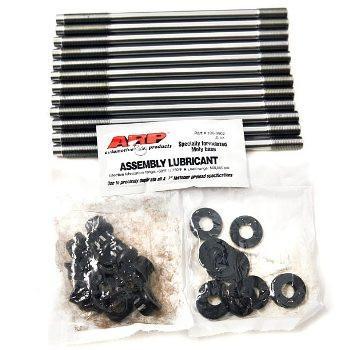

What's in the Box

  • Head studs
  • 12-point nuts
  • Washers
  • ARP Ultra-Torque fastener assembly lubricant

Installation

Clean and chase all bolt threads in the block to ensure proper thread engagement and accurate torque readings, and inspect all hardware before installation. Screw the studs into the block hand tight only; if the studs extend into a water jacket, coat the threads with ARP thread sealer. Install the gasket and cylinder head, lubricate the stud threads, washers and nuts with ARP Ultra-Torque fastener assembly lubricant, and tighten the nuts following the engine manufacturer's torque sequence to the torque value on the instruction sheet provided with the kit.

Q&A

Which vehicles does this head stud kit fit?
It fits the 1993-1998 Toyota Supra with the 3.0L 2JZGE or 2JZ-GTE inline 6-cylinder engine. It covers both the non-turbo 2JZGE and the turbo 2JZ-GTE.

What is included in the box?
The kit includes the head studs, 12-point nuts and washers for this application. ARP Ultra-Torque fastener assembly lubricant is also included.

What are the studs made of?
The studs are made from premium grade 8740 chrome moly steel with a black oxide finish. Each stud is heat-treated to 200,000 psi and centerless ground after heat-treat.

How are the studs installed?
The studs are screwed into the block hand tight only, and the nuts are then tightened following the engine manufacturer's torque sequence to the torque value on the instruction sheet provided with the kit. ARP specifies lubricating the stud threads, washers and nuts with ARP Ultra-Torque fastener assembly lubricant before installation.
