FactionFab 22-24 Subaru WRX F-Spec Coilover Kit | 1.10278.1

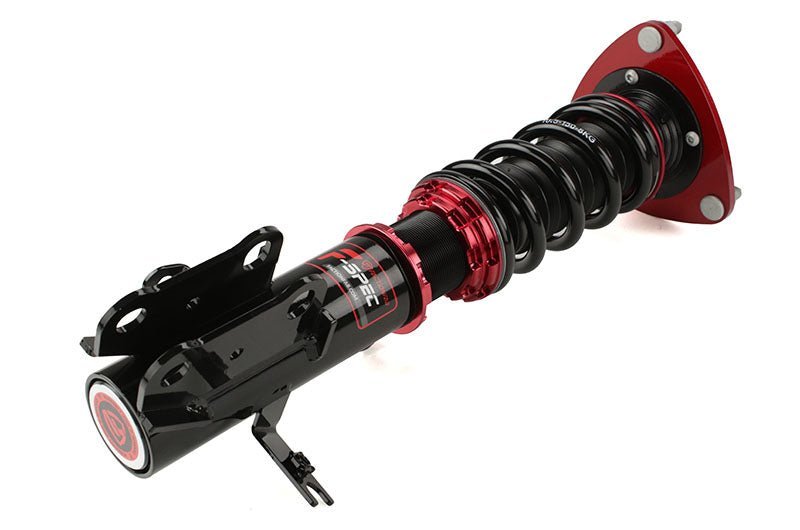

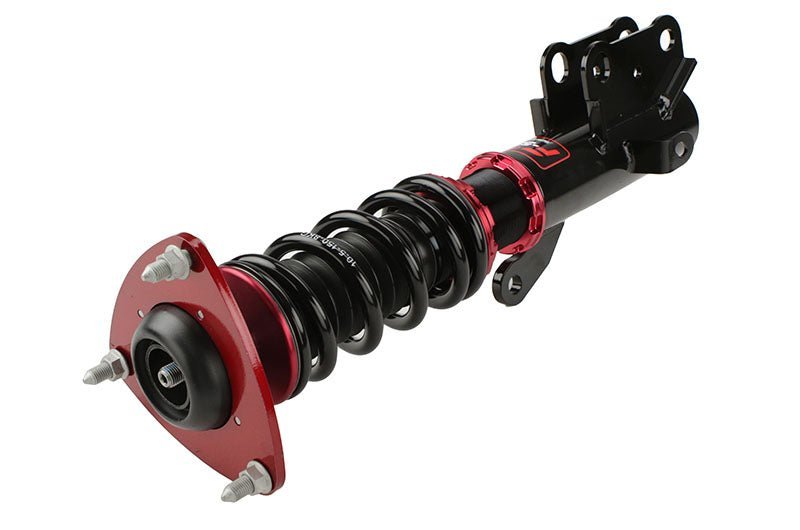

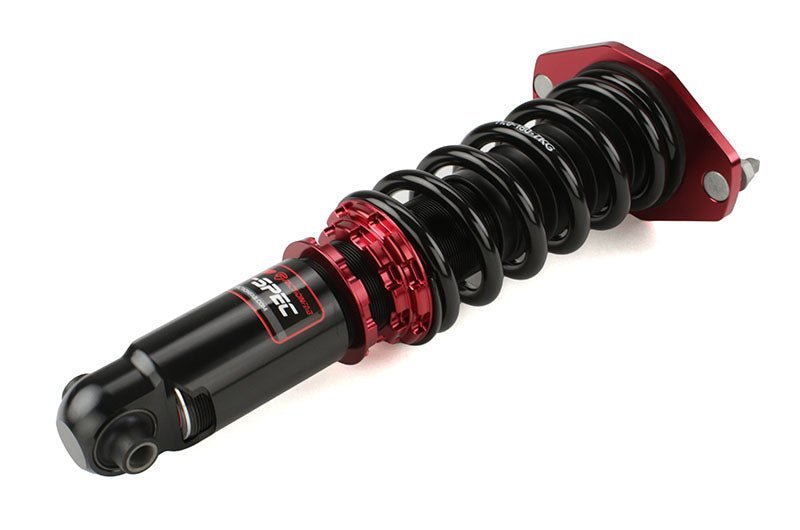

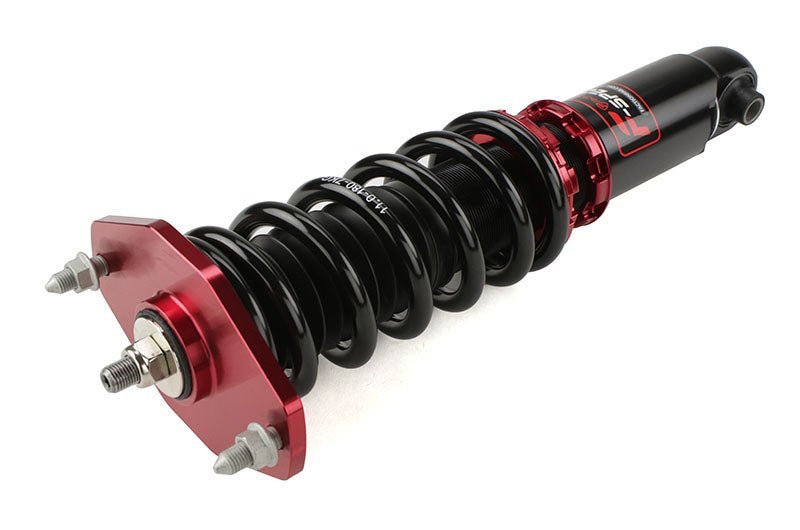

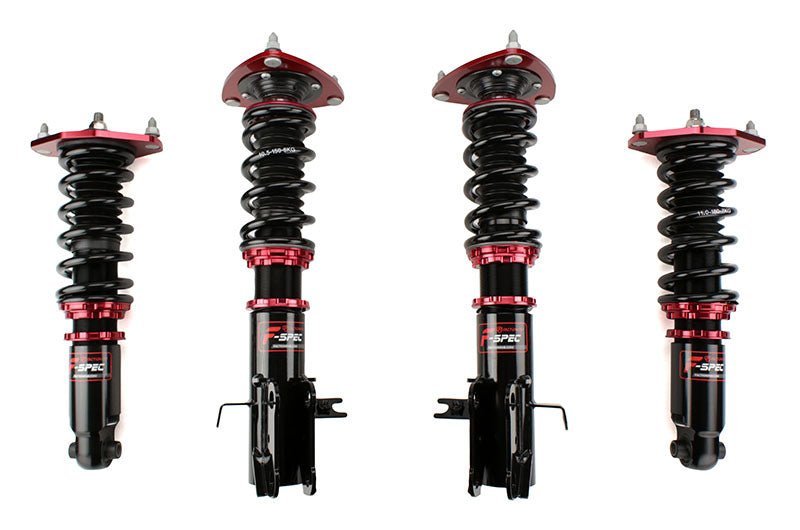

Here, you are looking at the FactionFab F-Spec Coilover Kit for your 2022 WRX.

These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your vehicle. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.

With a completely new platform for the 2022+ WRX, Factionfab started from ground zero with their development process and spent 6 months doing testing in all driving and weather conditions to ensure that our coilovers are truly designed and built for this car. Factionfab was able to keep most of the same recognizable features that make their coilovers great, tailoring them to fit this new chassis. This includes revised springs and damper sizes, 2 different lower mount styles, and end link solutions to offer the best ride height adjustment range for all 3 Coilover lines.

The F-Spec lower mount is built for a budget and beginner-friendly driver. It uses a lengthened lower section and the end link mount is extended to an OEM equivalent location so it can reuse the OEM end link.

The end result is a less complicated install and fewer moving pieces / less prone to maintenance or problems down the road such as knocking loose adjustment nuts.

Quick Details:

• Comfort-focused and budget-friendly.
• Soft spring rates (8k/7k) and valving for OEM-like ride quality.
• Includes full ride height and damping adjustment.
• Rubber isolated top hat included (not camber adjustable).
• Lower mount designed to utilize OEM end link mount location and reuse OEM end link.

SPECS:

• Increased spring rates and shock valving over stock suspension with emphasis on street performance while not jeopardizing ride quality and comfort
• 32-click adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
• The adjustment allows customers to fine-tune ride quality from soft too stiff in order to meet their road surface and driving environmental needs
• Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections

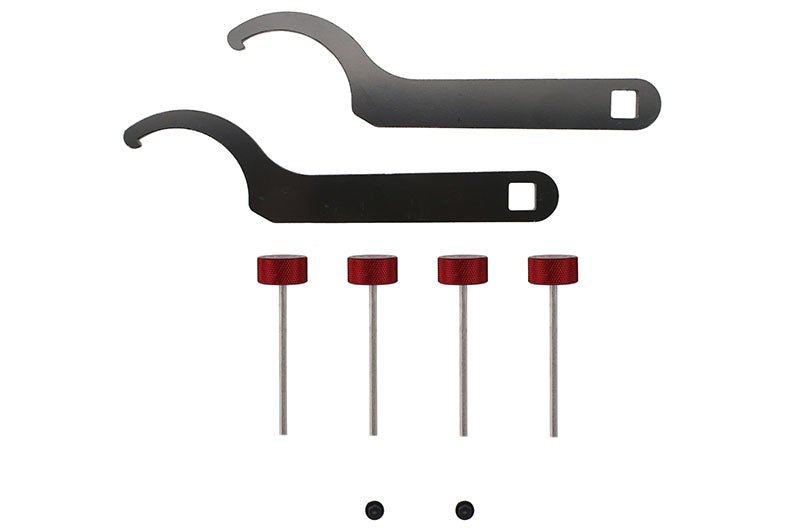

• Includes height adjustment tools
• Includes damping adjustment tools

GENERAL:

• Japanese steel tube construction using SAE1010 STKM13c
• Monotube shock design with high-performance mono-tube shock construction allows for better rider control, fluid life, and thermal fluid stability
• Synthetic high-performance oil
• Independent ride-height adjustability separately from spring pre-load allows the customer to set the ride height without having to worry about shock travel
• Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
• Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
• Robotic welded and electroplated lower shock mounts for consistent fit and finish
• Dust boots and bump stops for shock protection and longevity
• Individually sold components allow for replacement or upgrade of components as desired or needed
• Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise
